| OEM | , K000687, 1603326 |
| Product Code | 4K050 |
Piece

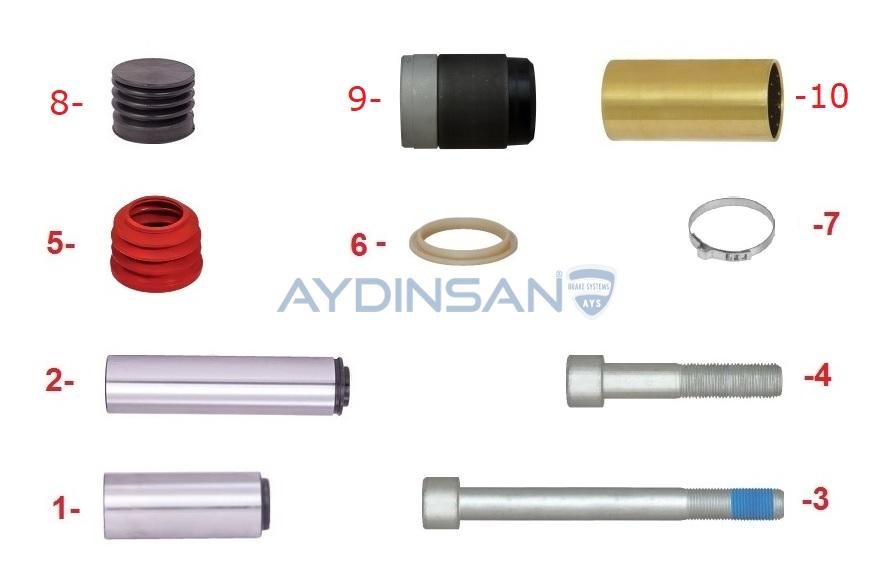

| Image | Position | Description | Product Code | Piece | Size |
 | 1 | Guide Pin (36x145) | 4K507 | 1 | Ø36x145 mm |
 | 2 | Caliper Guide Pin Ø32 x 80 mm | 4K501 | 1 | Ø32x80 mm |

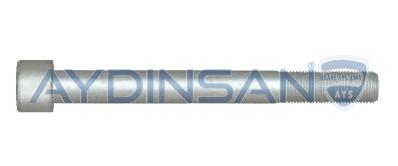

 | 3 | PIN BOLT (M16x1,5 x 150 mm) | 4K518 | 1 | M16x1,5x150 mm |
 | 4 | BOLT (SHORT) | 4K513 | 1 | M16x1,5x80 mm (İMBUS 10,9) |
 | 5 | CALIPER INNER BOOT | 4K531 | 1 | - |
 | 6 | Inner Boot Ring | 4K551 | 1 | - |
 | 7 | OUTER BOOT CLIP | 4K552 | 1 | - |
 | 8 | OUTER BOOT | 4K532 | 1 | - |
 | 9 | Caliper Metal-Rubber Bush | 4K523 | 1 | Ø39 mm |
 | 10 | BRONZE BUSH (Ø40 x Ø36 x 82) | 4K521 | 1 | Ø40 x Ø36 x 82 mm |
